High-Frequency Electrosurgical Unit HFE-200 "Nadiya-4", Model 200RK/DFS

This device is designed for coagulation (vessel sealing) and cutting (resection) of soft tissues and blood vessels using high-frequency (HF) current during surgical procedures in hospitals and clinics, utilizing monopolar or bipolar electrosurgical instruments.

The unit is intended for use in specially equipped rooms at ambient temperatures from 10 °C to 35 °C and relative humidity up to 80 % at 25 °C ambient temperature.

Principle of Operation

The device is a high-frequency current source to which monopolar (active and passive electrodes) and bipolar electrosurgical instruments can be connected. HF voltage is applied to the selected electrodes depending on the chosen operating mode.

The electrosurgical cutting and coagulation effect is based on heating biological tissues with a narrow HF current flow at the contact point of the active monopolar instrument or between the tips of the bipolar instrument.

When using a monopolar instrument, the active electrode is significantly smaller than the passive electrode, resulting in much higher current density and tissue heating near the active electrode. At sufficient power, tissue fluid vaporizes, causing cutting.

When using a bipolar instrument, both electrodes are active and positioned close together. HF voltage between them generates current that heats tissue, causing protein coagulation at the appropriate temperature.

Main Technical Specifications and Characteristics

The unit provides two functions: cutting and coagulation. The operating modes and parameters are listed in the table below:

Device Offers:

• 8-hour operation at maximum output in repeated short cycles (10 s ON, 30 s OFF);
• Idle and short-circuit modes at all output levels;
• Output current control in monopolar mode via foot pedal or handle buttons;
• Instrument exchange during operation without system shutdown;
• Visual indicators for power, modes, power level, and fault alerts (“Attention! Critical error – please reboot!” displayed when self-test fails);
• Automatic shut-off and alert on passive electrode disconnection (“Attention! Passive electrode disconnected – please check connection!” displayed);
• Audible feedback for power/mode changes;
• Discrete power adjustment:
  • 5–50 W step 1 W;
  • 50–120 W step 5 W;
  • 120–200 W step 10 W.
• Safe mode/tool change during HF output;
• Prevention of mode switching during active HF output;
• 12 programmable user profiles;
• Defibrillator discharge protection.

Product Composition and Delivery Set

* The delivery set may vary according to the packing list.

Device Design

Constructed as two modules: the electronic unit and foot pedal.

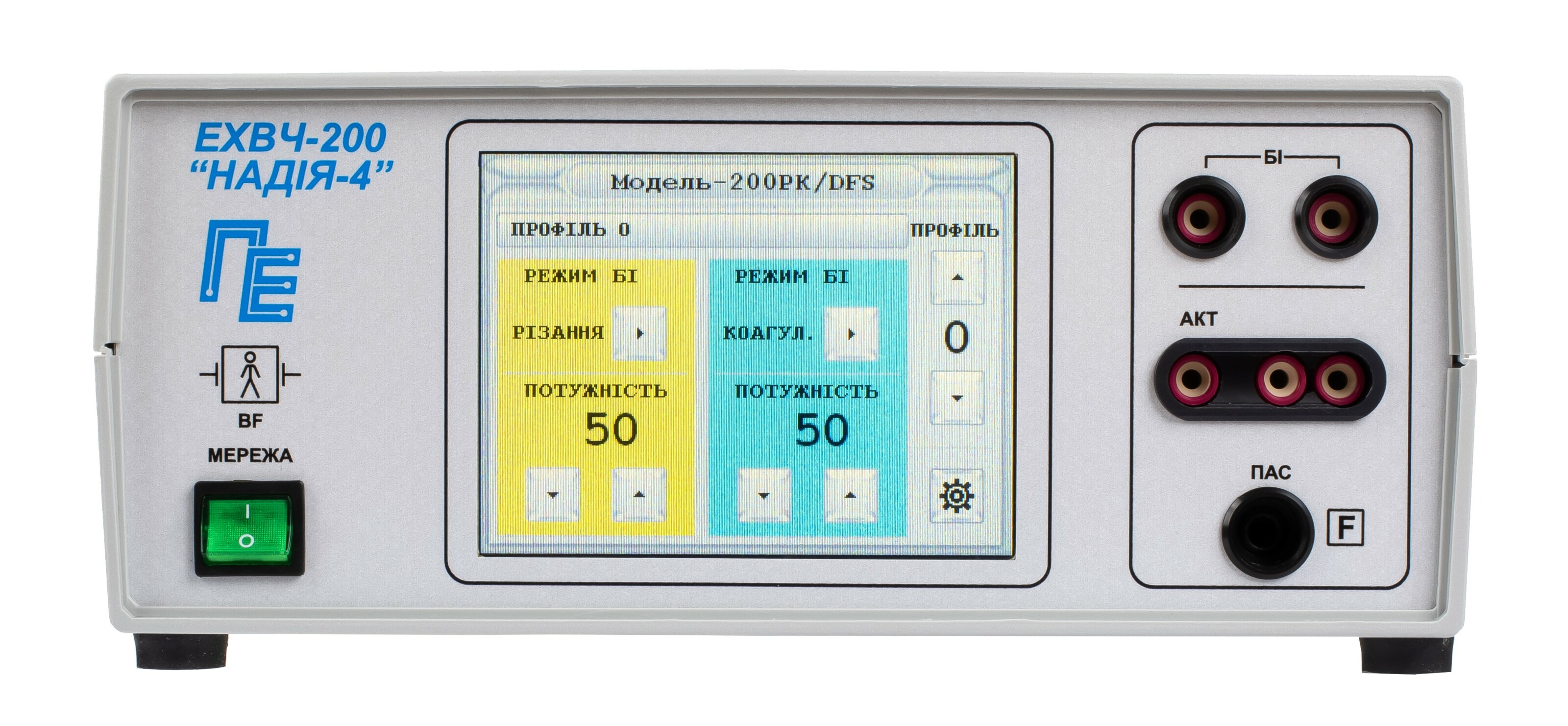

Front Panel of Electronic Unit

1. Touchscreen display.
2. CUT mode indicator.
3. Profile indicator button.
4. CUT mode switch.
5. COAG mode indicator.
6. COAG mode switch.
7. Profile switch button.
8. Profile display.
9. Bipolar cable connector.
10. Monopolar cable socket.
11. Passive electrode cable socket.
12. Settings/menu button (password, language, timeout).
13. Power level adjustment buttons (COAG).
14. Power level display (CUT/COAG).
15. Power adjustment buttons (CUT).
16. Mains power switch.

Rear Panel of Electronic Unit

1. Foot pedal socket.
2. Cooling fan.
3. Power cable.

Foot Pedal
Top view	Bottom view

1. Pedal cable connection;
2. CUT pedal;
3. COAG pedal;
4. IPX7 rating symbol.

The foot pedal has two spring-loaded platforms—left for CUT, right for COAG. Pressing engages; release disengages. It connects to the electronic unit via cable.

Electrode & Foot Pedal Connection Diagram

High-Frequency Electrocautery HFE-200 "Nadiya‑4" Model 200RK/DFS: Excellent Device for Broad Use

These units are designed for coagulation and cutting of various tissues in medical and veterinary patients. The HFE-200 Nadiya-4, Model 200RK/DFS is highly regarded in Ukraine and abroad as a domestically produced electrosurgical device.

Why Choose and Order the HFE-200 Nadiya‑4, 200RK/DFS?

There are many reasons to invest in this equipment. It expands surgical capabilities, enhances procedure quality, and reliability—all backed by the manufacturer. Additionally, the HFE‑200 Nadiya‑4, 200RK/DFS can be ordered online from our official store.

Operational Features

This unit streamlines a wide range of surgical procedures, significantly reducing operative time while maintaining consistent performance throughout the day. It is suitable for gynecology, microsurgery, endoscopy, plastic, and general surgery.

Key Advantages

• Rapid, accurate coagulation with predictable outcomes;
• Precise control of thermal depth in tissue;
• Minimal risk of perforation at treatment site;
• Elimination of uncontrolled bleeding;
• Reduced risk of infection transmission;
• Procedure possible without anesthesia;
• Fine, near-invisible incisions and sutures;
• Compact, lightweight design for portability;
• Easy-to-use touchscreen interface;
• Energy-efficient operation;
• Cost-effective instruments, consumables, and maintenance.

We recommend purchasing the HFE-200 Nadiya-4, Model 200RK/DFS from our online store at affordable prices, meeting international standards. Contact us via phone or message for assistance.
